• Proximity access with Smart Door Module
• 500 users
• Software for programming
• Inputs for door status and egress
• Output for lock.

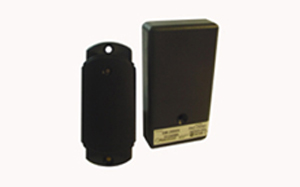

The IntelliProx 2000 is a groundbreaking new product that can be used as an economical single door proximity reader-based access control system for up to 500 users. It is an extremely simple and cost-effective solution and does not require the use of a computer.
Programming is accomplished via the HPP-22 RF Hand Held Programmer.
Cards can be added or deleted from the access privilege database, the door can be unlocked as would normally be done during business hours, and the operator`s security PIN (personal identification number) can be changed, all by simply pointing the programmer at the reader and issuing a simple command.
Because the IP-2000 also has a 26 bit Wiegand™ output, it can be used in place of a traditional proximity reader with any manufacturer`s access control system to provide user backup should the primary access control system become non-functional for those users with 24 hour access privileges; and be used to upgrade a larger access control system should the user want to expand beyond a single door.
The relay output can also be used to trigger any other type of device based on a successful card event.
As a Single Door System:
· Relay Output for Electric Strike/Lock
· Nonvolatile Memory for up to 500 users
· Five Superior Proximity Reader Styles to Choose From
· Simple Programming via RF Hand Held Programmer
· Door Sense Input to Monitor Status
· Local Door Held Open Alarm
· Request to Exit Input
· Multicolor LED and Audio Tone for User Feedback
· Can Be Used When Access Control System Expands Beyond One Door via 26-bit Wiegand output.
In Place of a Standard Proximity access:
· Industry Standard 26-bit Wiegand Output
· Five Superior Proximity access Styles to Choose From Local Door Control Backup for Primary Controller
· Longer Cable Runs
· Better Surge/Transient Protection for Primary Controller
· Multicolor LED and Audio Tone for User Feedback |
